Types of Bed Fittings & Wall Bed Hardware Malaysia 2026 — Space-Saving Solutions Explained
Space is the defining constraint of Malaysian urban living. Whether you’re in a 700 sq ft condo in Kuala Lumpur, a studio apartment in Johor Bahru, or a terrace house with a small spare room doubling as a home office, the bed is almost always the biggest obstacle to usable floor space. Wall beds — also called Murphy beds or fold-down beds — solve this problem directly. But the quality of the bed fitting hardware is what separates a wall bed that operates smoothly for 15 years from one that sags, creaks, or fails to hold its position after 18 months. This guide covers every bed fitting and wall bed hardware type available in Malaysia in 2026, with guidance on mechanisms, load ratings, and what to specify for your space.
What Are Bed Fittings?
Bed fittings are the mechanical hardware components that allow a wall-mounted fold-down bed to operate safely and smoothly. They include the lift mechanism, the leg system, the mattress retention straps, the locking system, and the frame connectors that hold the entire assembly to the wall.
The quality, load rating, and mechanism type of the bed fitting directly determines:
- How smoothly and safely the bed opens and closes
- Whether the bed holds its position in both the open (sleeping) and closed (stored) positions
- How long the hardware lasts under daily use
- The maximum mattress weight and size the system can support
Cheap, undersized bed fittings are the primary cause of wall bed failure in Malaysia. The fitting must be matched to the mattress weight, bed size, and usage frequency.
Wall Bed Mechanism Types
1. Piston / Gas Lift Mechanism
The gas lift (or piston) mechanism is the standard for modern wall beds in Malaysia. Two nitrogen gas pistons — one on each side of the bed frame — provide controlled resistance during both lowering (opening) and raising (closing) the bed. The pistons are calibrated to the combined weight of the bed frame and mattress.
How it works: When you pull the bed down from the wall, the gas pistons provide smooth, controlled resistance so the bed descends gradually rather than dropping. When you push the bed up, the pistons assist the lift — meaning you’re not fighting the full weight of the mattress and frame to close it.
Load ratings: Available in multiple piston force ratings to match different mattress weights:
- Light duty: 50–80kg total load (single / super single mattress)
- Medium duty: 80–120kg total load (queen mattress)
- Heavy duty: 120–180kg total load (king mattress or extra-thick foam)
Key specification: Always specify piston force based on the combined weight of the mattress AND the bed frame panel — not the mattress weight alone. A 25kg queen mattress in a 15kg MDF frame panel requires a mechanism rated for 40kg minimum, with 20% safety margin = 48kg. Choose the next rating above this figure.
Best for: Residential wall beds in condominiums, studio apartments, and spare rooms. The smoothest and safest mechanism for daily use.
2. Spring Tension Mechanism
Spring tension mechanisms use heavy-duty coil springs rather than gas pistons to counterbalance the weight of the bed. They are older in design but still widely specified for heavier beds and commercial applications where gas pistons may require more frequent servicing.
Advantages over gas pistons:
- Higher maximum load capacity (up to 250kg for heavy-duty spring sets)
- No gas cylinder to recharge or replace
- More suitable for king and super king beds
Disadvantages:
- Spring tension must be manually adjusted if the mattress weight changes
- The opening and closing motion is less smooth than gas pistons
- Requires more precise installation — incorrect spring tension causes the bed to be either too hard to close or too easy to fall open
Best for: Heavier king-size wall beds, commercial dormitory applications, and installations where long-term serviceability without gas cylinder replacement is a priority.
3. Vertical vs Horizontal Wall Bed Orientation
Wall beds fold either vertically (the bed head is at the top when stored, and the bed descends downward to sleeping position) or horizontally (the bed is stored sideways in a tall cabinet and folds out to the side).
Vertical fold-down (standard):
- Most common in Malaysian homes
- Requires ceiling height of at least 2.4m for a queen bed (mattress length 190cm + frame clearance)
- Bed head is against the wall in sleeping position — natural sleeping orientation
- Smaller wall footprint when stored
Horizontal fold-out:
- Used when ceiling height is limited or when the bed needs to fold out from a side-by-side wardrobe unit
- Mattress lies with the long dimension horizontal — requires wider wall panel
- Common in custom furniture pieces combining wardrobe and bed in one unit
- Better for rooms with lower ceilings or unusual layouts

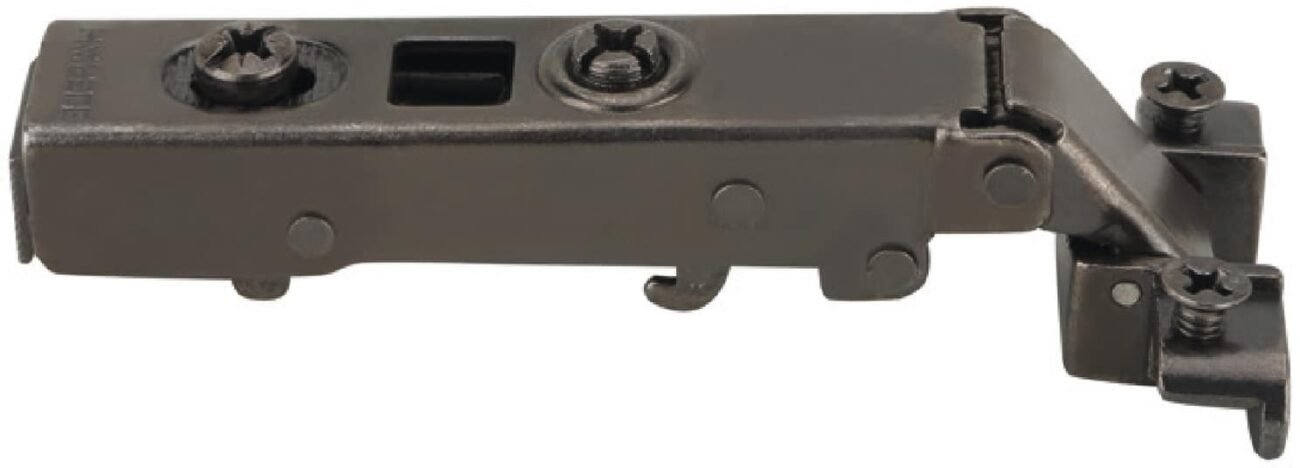

H500 Soft Close Hinge L / R
RM245.0 RM300.0Price range: RM245.0 through RM300.0
Hafele Undermount Soft Close
RM69.0 RM101.0Price range: RM69.0 through RM101.0
HAFELE SLIDO ECLIPSE 16IF/VF ( pocket slide )
RM524.0 RM533.0Price range: RM524.0 through RM533.0
LED Profile
RM6.7 RM28.0Price range: RM6.7 through RM28.0
HAFELE SLIDING TRACK 60/100KG
RM79.0 RM219.0Price range: RM79.0 through RM219.0
Bed Fitting Components — What You Need
A complete wall bed installation in Malaysia requires these hardware components:
Frame Connectors and Wall Mounting Brackets
The wall mounting bracket is the most critical structural component. It anchors the entire bed assembly — bed frame, mattress, and occupant weight — to the wall. In Malaysian construction, walls are typically:
- Brick and mortar (landed properties, older condos) — use expansion bolt anchors minimum M10
- Lightweight concrete block (newer condos) — use chemical anchor bolts
- Drylining / partition wall — wall beds cannot be mounted to drylining alone. A structural backing panel or direct connection to the building structure is required
Critical rule: Never mount a wall bed to a partition wall without engineering the anchor point back to a structural element. A wall bed failure under load is a serious safety hazard.
Mattress Retention System
When the bed is stored vertically (closed position), the mattress must be held securely against the bed panel. Bed fittings include either:
- Elastic strap system: Two or four horizontal elastic straps across the mattress face. Simplest and most common. Suitable for foam and pocket spring mattresses up to 25cm depth.
- Frame border system: A fixed border frame around the mattress perimeter that physically contains the mattress. Better for thicker mattresses (25–35cm depth) or latex mattresses that may compress unevenly under elastic straps.
Leg System
When the bed is in the open (sleeping) position, the foot of the bed must be supported by legs — not left cantilevering from the wall mechanism alone. Two leg options:
Fixed folding legs: Legs fold flat against the underside of the bed panel when stored. They automatically deploy as the bed opens. Simple, reliable, and standard for most Malaysian wall bed installations.
Adjustable floor glides: Rubber-tipped floor contact pads on the leg bases protect flooring (important for Malaysian tile and vinyl plank floors) and allow minor levelling adjustment if the floor is not perfectly flat.
Locking System (Closed Position)
When the bed is stored vertically, it must be locked securely in the closed position so it cannot accidentally fall open. Standard bed fittings include:
- Magnetic catch: Simple magnetic closure on the cabinet door or frame. Adequate for light-use installations.
- Mechanical latch: A spring-loaded latch that positively locks the bed panel in the closed position. Standard for family homes with children.
- Key lock: Available on premium fittings for commercial dormitory or rental applications where the bed should only be operated by an authorised user.
How to Choose the Right Bed Fitting for Your Malaysian Home
Step 1 — Determine your bed size and mattress weight. Measure your mattress dimensions and weigh it (or check the manufacturer specification). Add the estimated weight of the MDF or plywood bed panel (typically 15–25kg for a queen panel). This is your total mechanism load.
Step 2 — Choose mechanism type. Single or queen mattress, daily use → gas piston mechanism. King or super king, heavy mattress (latex or pocket spring) → spring tension mechanism.
Step 3 — Check your wall type. Brick or reinforced concrete → standard expansion bolt anchors. Lightweight block → chemical anchor bolts. Partition wall → do not mount directly. Consult a contractor for structural backing.
Step 4 — Choose orientation based on ceiling height and room layout. Ceiling 2.4m or above, normal room → vertical fold-down. Lower ceiling or wide-wall layout → horizontal fold-out.
Step 5 — Specify mattress retention for your mattress type. Foam or standard spring mattress up to 25cm → elastic strap system. Latex, memory foam, or pocket spring above 25cm → frame border retention system.
Popular Wall Bed Applications in Malaysian Homes
Studio apartment / serviced apartment: A single or queen vertical wall bed with an integrated desk that folds down with the bed — the desk is on the underside of the bed panel. When the bed is open, the desk is stored. When the bed is closed, the desk is at working height. Popular in Kuala Lumpur and Johor Bahru service apartment fit-outs.
Spare room / home office: A horizontal fold-out queen wall bed integrated into a full-height wardrobe unit. The room functions as a home office with full wardrobe storage when the bed is closed. Guests pull out the bed when needed. The wardrobe and bed share the same wall width.
Children’s bunk wall bed: Vertical bunk-style wall beds with two fold-down berths, one above the other. Requires heavy-duty fittings with positive locking on both berths. Less common in Malaysia but increasingly specified in compact terrace house children’s rooms.
Where to Buy Bed Fittings in Malaysia
Acts ID Hardware stocks a full range of wall bed fittings and Murphy bed mechanisms — including gas piston sets (light, medium, and heavy duty), spring tension mechanisms, mattress retention systems, and leg hardware. We supply to interior designers, custom furniture manufacturers, and homeowners across Malaysia, shipping from Ulu Tiram, Johor.
Browse the bed fitting range on our site, or WhatsApp our team at +6013-790 1266 with your mattress size, weight, and wall type for a specific recommendation. Free delivery on orders above RM 300 (West Malaysia).
Frequently Asked Questions
What is a wall bed fitting and why does it matter?
A wall bed fitting is the mechanical hardware assembly — pistons or springs, wall brackets, leg system, and mattress retention — that allows a fold-down bed to operate safely. The fitting quality determines how smoothly the bed opens and closes, whether it holds its position safely, and how long it lasts. Undersized or poor-quality fittings are the primary cause of wall bed failure in Malaysia.
What size gas piston do I need for a queen wall bed in Malaysia?
For a standard queen mattress (approximately 20–25kg) in a 15–20kg MDF bed panel, you need a gas piston mechanism rated for a minimum of 40–45kg combined load, with a 20% safety margin — so specify a 50–60kg rated mechanism. Always confirm your actual mattress weight before purchasing. Acts ID stocks medium-duty gas piston sets suitable for queen beds — WhatsApp our team to confirm compatibility.
Can I install a wall bed on a condo partition wall in Malaysia?
Not directly. Partition walls (lightweight steel stud and drywall) cannot carry the load of a wall bed safely. The wall mounting bracket must be anchored to a structural element — either a concrete column, a structural masonry wall, or a dedicated backing frame engineered into the partition. Always consult your contractor before specifying a wall bed location in a Malaysian condominium.
How long do wall bed gas pistons last in Malaysia?
Quality gas piston mechanisms are rated for 10,000–20,000 open/close cycles. At one open/close cycle per day, that is 27–55 years of operational life. In practice, piston seals can degrade faster in very humid environments — particularly in rooms without air conditioning. Specify pistons with sealed nitrogen chambers and stainless steel shafts for Malaysian conditions. Acts ID gas piston sets include a 3-year warranty.
Can a wall bed hold the weight of two adults?
Yes, if the fitting is correctly specified and the wall anchor is installed into a structural wall. A heavy-duty gas piston or spring mechanism rated at 150kg or above, anchored into a structural concrete or masonry wall with M10 expansion bolts, will safely support two adults. The critical point is correct specification — a light-duty mechanism on a partition wall cannot and should not be used this way.
