Wardrobe Hardware Guide Malaysia — Sliding Systems, Hinges & Fittings Explained
Most wardrobe problems don’t start with bad carpentry. They start with the wrong hardware. A sliding door that jumps off its track, a hinge that sags after six months, a drawer that rattles every time you open it — these are hardware failures, not design failures. If you’re renovating a built-in wardrobe or replacing fittings in an existing one, choosing the right wardrobe hardware in Malaysia makes the difference between something that lasts a decade and something that fails in two. This guide breaks down every component you need to know before you buy.
What Is Wardrobe Hardware? (A Quick Breakdown)
Wardrobe hardware covers all the mechanical components that make a wardrobe functional — the parts that move, hold, secure, and organise. There are five main categories:
Sliding door systems — the tracks, rollers, and guides that allow wardrobe doors to slide open and closed. Available in top-hung and bottom-rolling configurations.
Hinges — for swing-door wardrobes. The hinge type determines how far the door opens and how it sits against the cabinet frame.
Drawer slides — the rail mechanisms inside the wardrobe that allow drawer boxes to pull out smoothly. Load rating and extension type vary by use.
Handles and knobs — the part you touch every day. Finish, profile, and material all affect both feel and longevity in Malaysia’s climate.
Internal fittings — hanging rails, trouser racks, pull-out shoe racks, and organiser accessories that define how usable your wardrobe actually is.
Each category has different grades, load ratings, and finishes. The sections below cover what matters for each one.
Wardrobe Sliding Door Systems — Types & How to Choose
Sliding wardrobes are the dominant style in Malaysian condominiums and terraced houses. They save floor space compared to swing doors, but only work well when the sliding system is correctly matched to the door weight.
There are two main configurations: top-hung and bottom-rolling. The choice between them affects installation complexity, door weight capacity, and long-term maintenance.

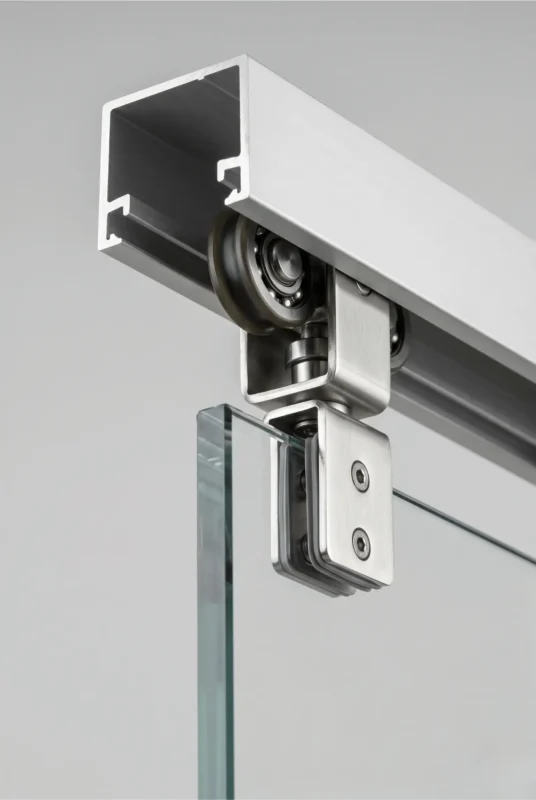

Top-Hung Sliding Systems
In a top-hung system, the door hangs from a track mounted at the top of the wardrobe frame. The bottom of the door has a guide channel to prevent lateral movement, but carries no load.
Top-hung systems handle heavier doors well — typically rated between 25 kg and 80 kg per panel depending on the hardware grade. They produce a cleaner floor line with no bottom track to trip over or collect dust. For wardrobe doors made from glass, thick MDF, or mirrored panels, top-hung is the correct choice.
Soft-close versions include a built-in damper that decelerates the door in the last 10–15 cm of travel, preventing slamming. In a condo or apartment, this matters considerably.
Bottom-Rolling Sliding Systems
Bottom-rolling systems use a track on the floor and a guide rail at the top. The rollers at the base of the door bear the full weight.
These systems are simpler to install and cost less, making them common in budget renovations and lighter wardrobe doors (typically under 30 kg per panel). The trade-off is the floor track — it accumulates dust, pet hair, and debris, and requires regular cleaning to keep rollers running smoothly. In Malaysia’s climate, this is worth factoring in.
Bottom-rolling systems are adequate for hollow-core or lightweight laminate doors. For heavier or glass doors, the roller wear rate is significantly higher.
ACTS 4140 / 4144 GLASS ROLLER
RM2.4 RM3.3Price range: RM2.4 through RM3.3
HAFELE Flush pull handle for sliding doors, Aluminium, one-sided, square
RM718.0 RM786.0Price range: RM718.0 through RM786.0

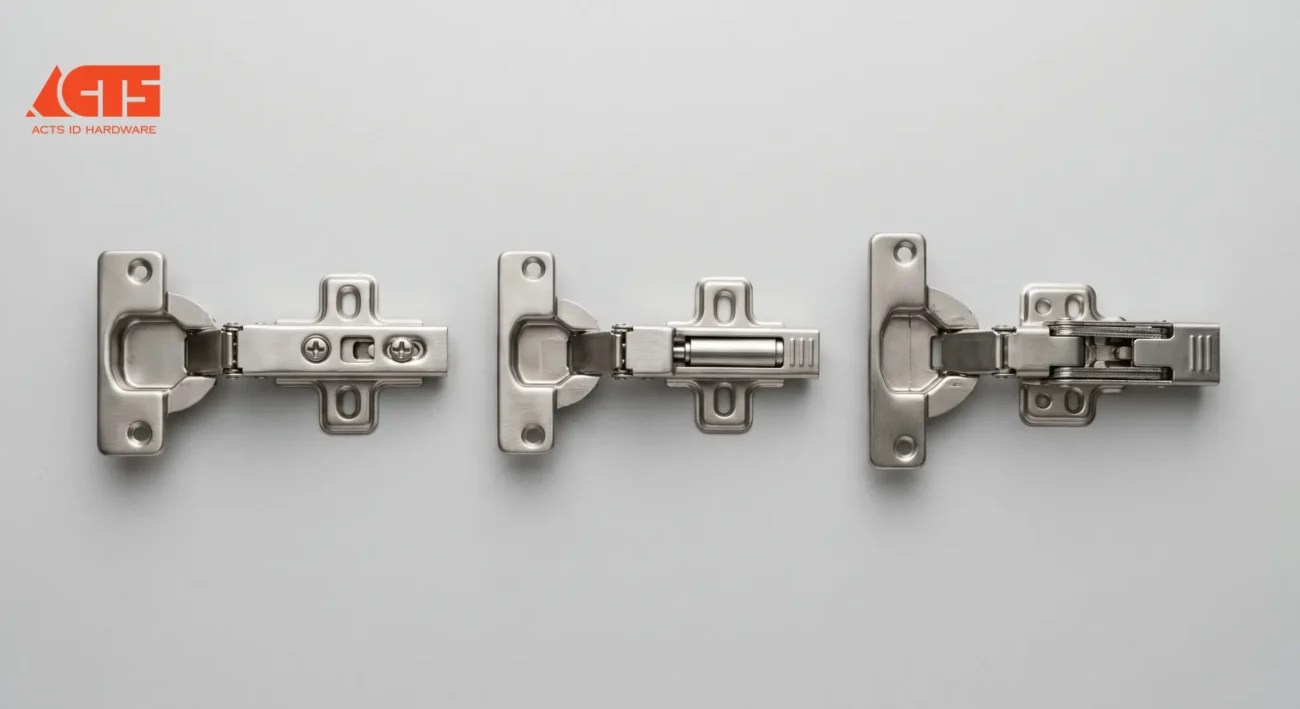

Wardrobe Hinges — Swing Doors & Overlays Explained
For wardrobes with swing doors, the hinge is one of the most important components to get right. Choosing the wrong overlay or opening angle causes doors to foul against each other, the frame, or adjacent walls.
The three main overlay types are:
Full overlay — the door covers the full face of the cabinet panel. Used in frameless (European-style) wardrobe construction. Requires a specific hinge cup depth.
Half overlay — the door covers half of the cabinet panel. Used when two doors share a single divider panel. Common in wardrobes with multiple sections.
Inset — the door sits flush inside the cabinet frame. Requires precise fitting and a hinge with a specific arm length. Less common in Malaysian built-in wardrobes but used in premium bespoke joinery.
Opening angle also matters. Standard hinges open to 95° or 110°. For corner wardrobes or wardrobes placed near walls, a 165° wide-angle hinge allows the door to open fully without hitting the wall. Check your available clearance before specifying.
Soft-close hinges include a hydraulic damper in the arm that slows the door in the final 15° of closing. For high-use wardrobes — master bedroom, walk-in, kids’ room — soft-close is strongly recommended. The mechanism extends hinge lifespan and eliminates the noise of a door swapping shut.
For a full comparison of soft-close versus standard hinges, see our Soft Close Hinges vs Normal Hinges guide.
Handles & Knobs for Wardrobes
Handles are the most-touched part of any wardrobe. In Malaysia’s humidity, finish selection directly affects how long they last without tarnishing, corroding, or degrading.
The most durable finishes for Malaysian conditions are:
- Brushed stainless steel — resists rust and humidity extremely well. No maintenance required.
- Powder-coated aluminium — matte black and matte white finishes. UV stable, non-corroding, easy to wipe clean.
- Zinc alloy (zamak) — mid-range option. Holds plating well in indoor conditions. Avoid in bathrooms or areas with direct moisture exposure.
- Brass-plated — attractive but requires maintenance. Tarnishes faster in humid environments unless properly sealed.
Handle profile affects both aesthetics and usability. Bar handles (long horizontal or vertical pulls) suit modern minimalist wardrobes. Cup handles (recessed into the door face) work well for wardrobes in tight spaces where a protruding handle would obstruct movement. Knobs offer a classic look but require a more precise grip — less practical for large, heavy wardrobe doors.
For wardrobes in children’s rooms, opt for bar handles with rounded edges and no sharp profiles.

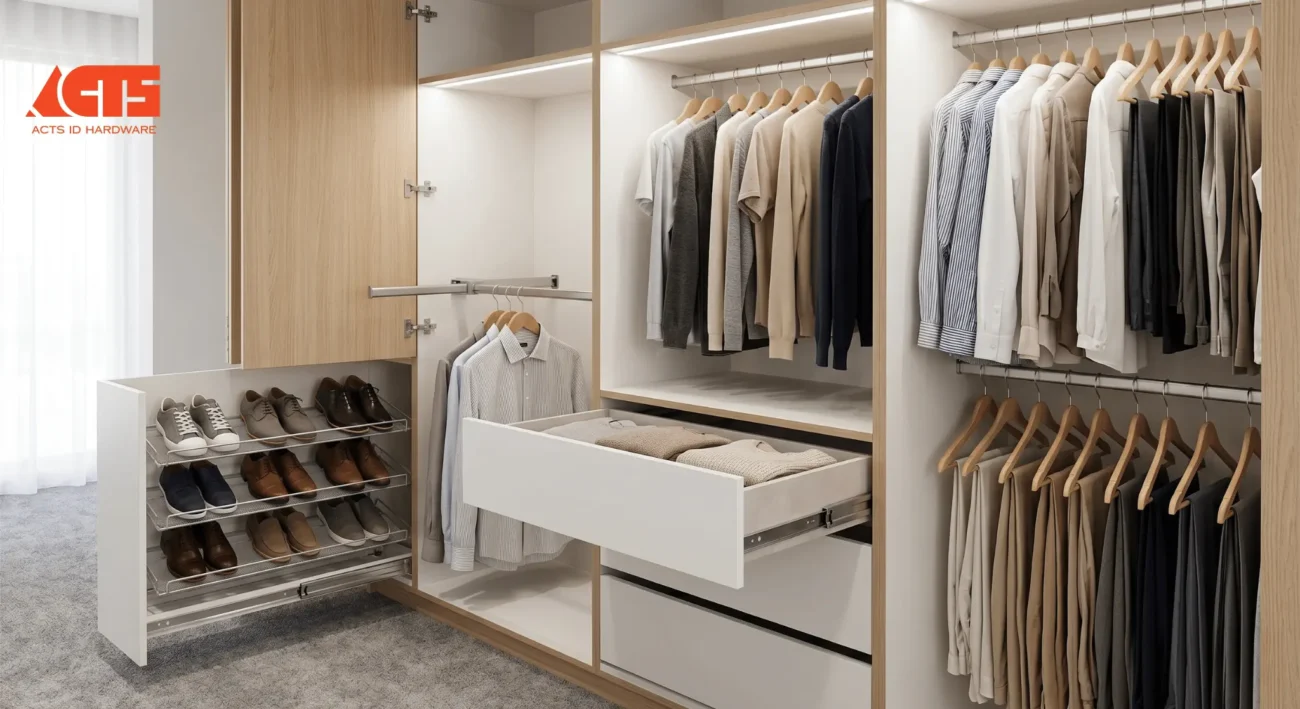

Internal Wardrobe Fittings — Rails, Drawer Boxes & Organisers
The interior fittings determine how usable your wardrobe actually is day to day. Common components include:
Hanging rails — available in round, oval, and flat profile. Aluminium rails are lighter and rust-proof, making them the better choice for Malaysian humidity. Steel rails offer higher load capacity (suitable for heavy winter clothes or hanging bags) but require a protective coating in humid rooms. Typical load ratings: 15–25 kg per metre for aluminium, up to 40 kg per metre for heavy-duty steel.
Drawer boxes — built into the wardrobe interior on drawer slides. Soft-close drawer slides are highly recommended here. The difference in daily experience between a soft-close drawer and a standard-stop drawer is significant, particularly for bottom drawers where you’re bending down to open them. For a full breakdown of drawer slide types, see our Drawer Runners Guide Malaysia.
Pull-out trouser racks — a narrow pull-out rail system for hanging trousers flat. Mounted on slides, typically rated to 8–12 kg.
Pull-out shoe racks — angled shelves on drawer slides. Rated for 15–20 kg per unit. Much easier to access than fixed shelf storage.
Valet rods — small extendable bars that pull out horizontally, used for laying out the next day’s outfit. A small detail that adds significant daily convenience.
All internal fittings should be sized and rated before purchase. Overloading internal hardware is one of the primary causes of premature failure in Malaysian wardrobes, particularly when drawers are used to store heavy items like folded jeans, bags, or shoes.
How to Choose the Right Wardrobe Hardware for Malaysian Homes
Use this checklist before you buy:
Step 1 — Determine your door type. Glass or mirrored panel → top-hung sliding system, minimum 40 kg rating. Lightweight laminate or hollow-core → bottom-rolling system is sufficient. Swing door → specify hinge overlay type (full, half, or inset) based on your cabinet construction.
Step 2 — Check your door weight. Measure or estimate the door panel weight. Always choose a sliding system rated at least 20–30% above the actual door weight — this accounts for wear over time and ensures smooth operation.
Step 3 — Select finish for your climate zone. Bathroom-adjacent wardrobe → stainless steel hardware only. Air-conditioned bedroom → brushed stainless or powder-coated aluminium. Non-air-conditioned room → avoid zinc alloy or brass-plated finishes.
Step 4 — Specify soft-close where doors or drawers are used frequently. Master bedroom, kids’ room, and main living area wardrobes benefit most. Utility or store rooms can use standard hardware.
Step 5 — Match internal fittings to actual usage. If 80% of the wardrobe content is hung clothing, prioritise hanging rail length over drawer boxes. If it’s primarily folded items, prioritise drawer boxes with soft-close slides.
Where to Buy Wardrobe Hardware in Malaysia
Acts ID Hardware stocks a full range of wardrobe sliding systems, hinges, handles, and internal fittings — including soft-close and heavy-duty options. We supply to homeowners, interior designers, and contractors across Malaysia, with shipment from our warehouse in Ulu Tiram, Johor.
Browse the wardrobe hardware range on our website, or WhatsApp our team at +6013-790 1266 if you’re not sure which component is right for your project. We’re happy to advise based on your door weight, cabinet construction, and budget.
Free delivery is available for orders above RM300 (West Malaysia).
Frequently Asked Questions
What hardware do I need for a built-in wardrobe in Malaysia?
A complete built-in wardrobe requires five categories of hardware: a door system (sliding or hinges for swing doors), handles or knobs, internal hanging rails, drawer slides if drawers are included, and any internal organiser fittings such as shoe racks or trouser racks. The specific grade and load rating of each depends on the door weight, door type, and how heavily the wardrobe will be used.
How much does wardrobe hardware cost in Malaysia?
Cost varies significantly by grade and type. As a general guide: basic bottom-rolling sliding systems start from RM 80–150 per set; top-hung soft-close systems range from RM 180–450 per set depending on load rating; soft-close hinges are priced from RM 8–25 per piece; aluminium hanging rails from RM 15–40 per metre; and soft-close drawer slides from RM 25–90 per pair depending on load rating and extension length.
Is soft-close wardrobe hardware worth it?
Yes, for most Malaysian homes. The daily reduction in noise is significant — particularly important in condominiums with thin walls and shared floors. Soft-close mechanisms also extend the lifespan of hinges and drawer slides by reducing impact stress at the end of each movement cycle. The cost premium over standard hardware is usually recovered in reduced replacement frequency within three to five years.
What is the best material for wardrobe hardware in humid climates?
Brushed stainless steel is the top choice for humid environments, including rooms without air conditioning and areas adjacent to bathrooms. Powder-coated aluminium is a close second — durable, lightweight, and rust-proof. Zinc alloy is acceptable in air-conditioned bedrooms but should be avoided in humid, unventilated spaces. Untreated iron or low-grade steel should never be used in Malaysian conditions.
Can I install wardrobe hardware myself?
Handles, knobs, and hinges are straightforward DIY installations requiring only a drill and screwdriver. Drawer slides require more precision but are manageable with patience and the right measurements. Full sliding door systems — particularly top-hung configurations — are better installed by an experienced carpenter or contractor, as the track alignment directly affects door operation. If you’re unsure, WhatsApp our team and we’ll point you in the right direction.
Looking for more hardware guides? Read our Furniture Hardware Buying Guide Malaysia 2026 or browse the full Acts ID Knowledge Hub for buyer guides across all product categories.
